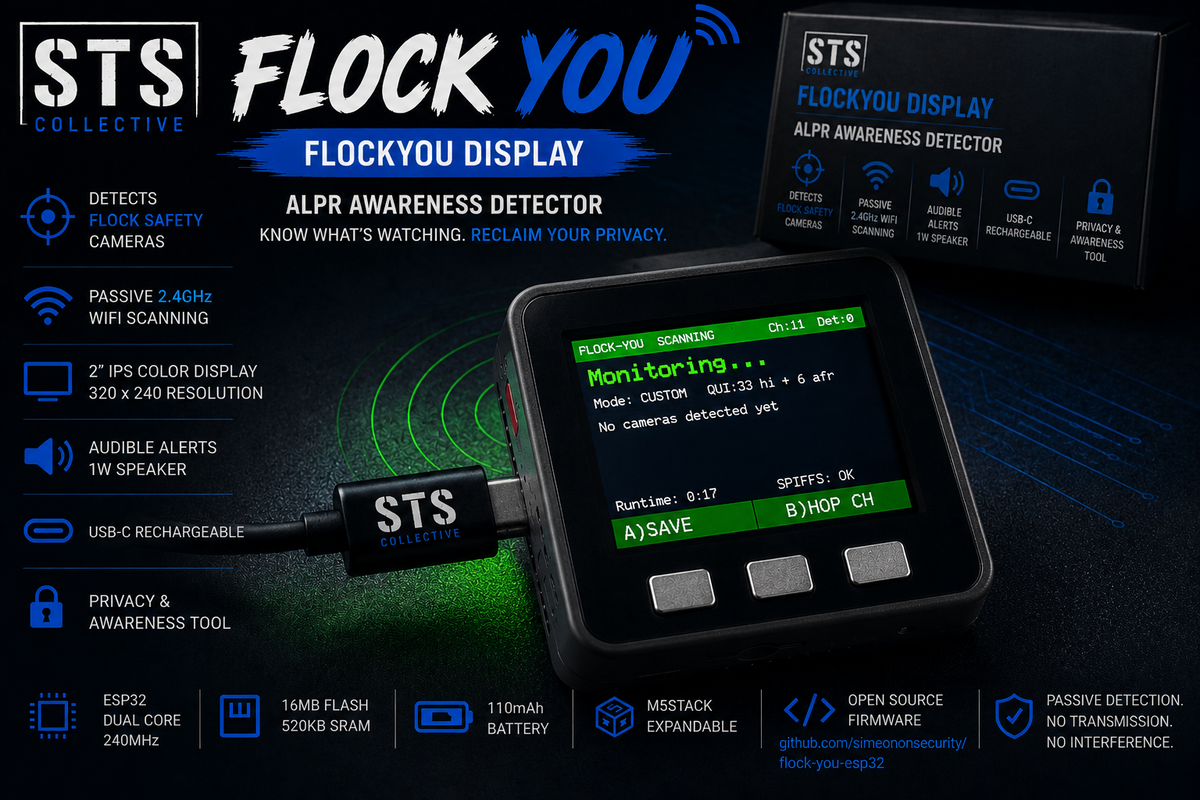

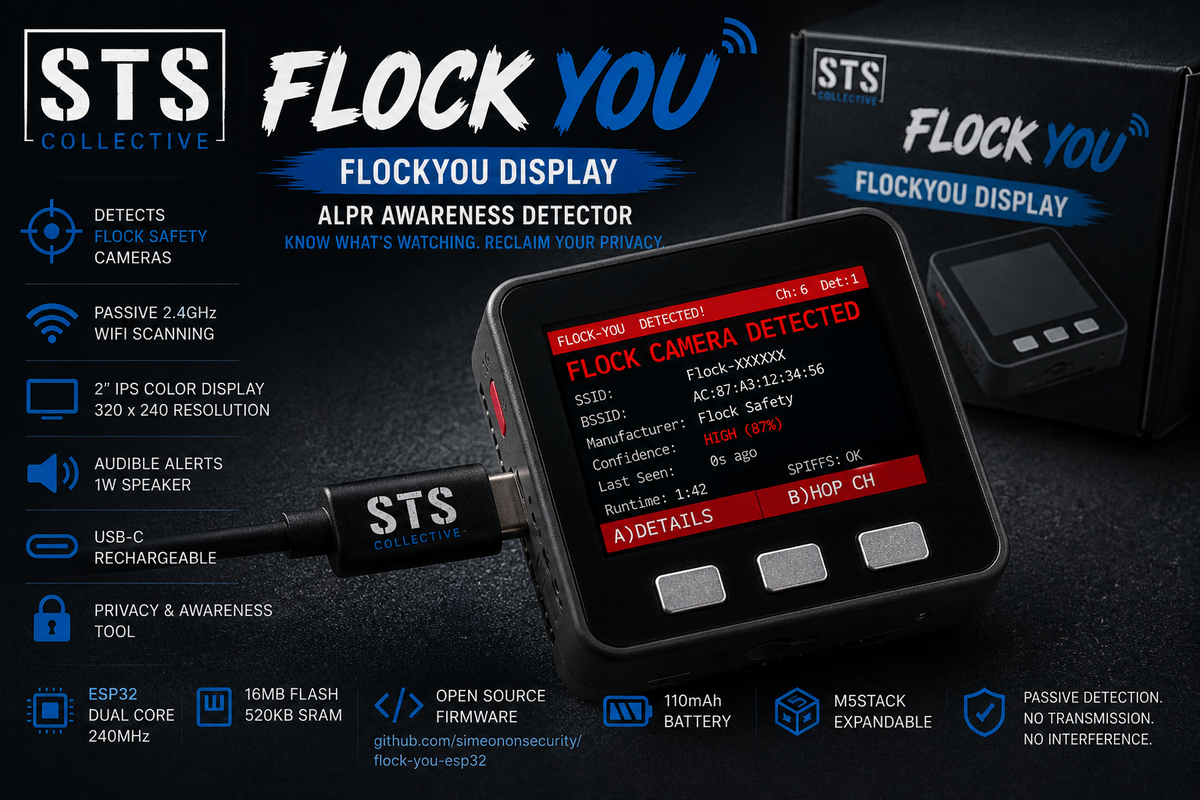

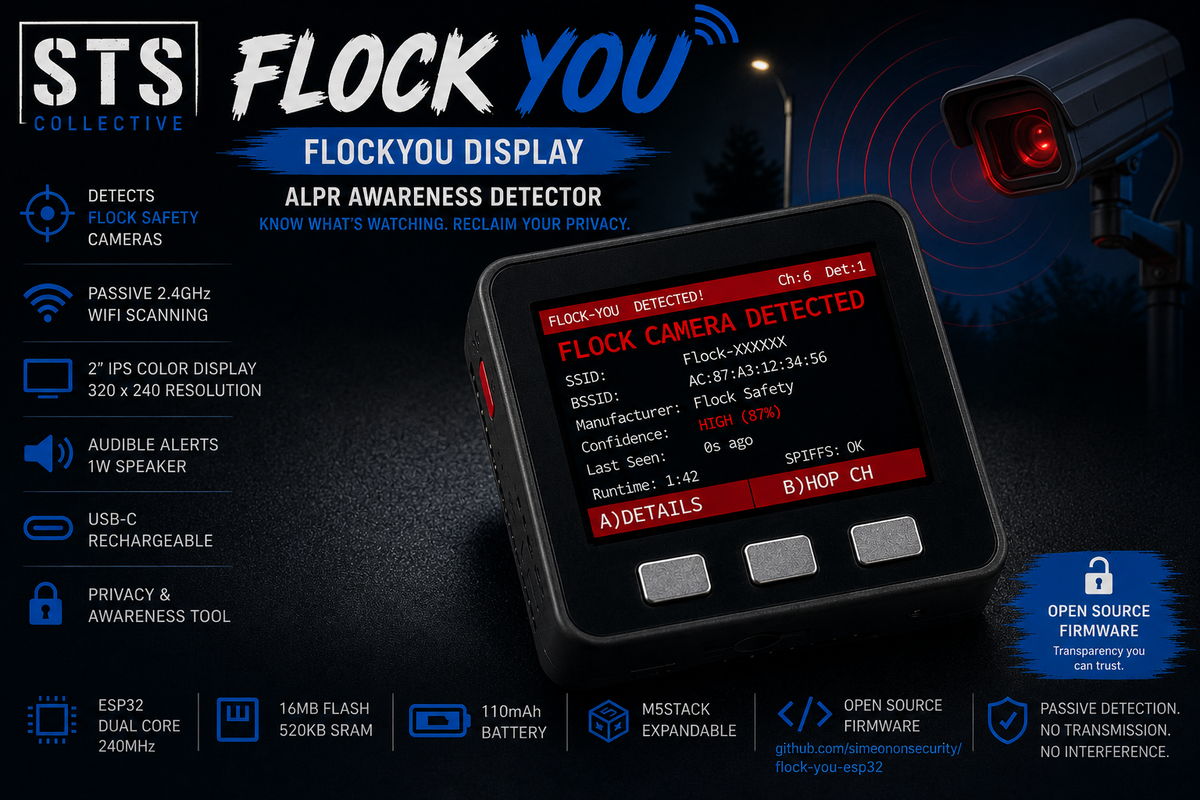

FlockYou Display | ALPR Awareness Detector with 2” IPS Screen

Before You Order

• Device: M5Stack Basic with a 2-inch IPS display, speaker and physical buttons.
• Power: Integrated 110mAh rechargeable battery and USB-C connection; charge before use.
• Detection: Supported 2.4 GHz Wi-Fi signatures associated with Flock/ALPR equipment.

Detection limits: Supported wireless signatures must be observable within range. A device can go undetected; no alert does not establish that an area is free of surveillance equipment.

Hardware Platform

M5Stack Basic

Processor

ESP32-D0WDQ6-V3 dual-core 32-bit processor operating up to 240 MHz

Wireless

2.4 GHz Wi-Fi

Display

2-inch IPS color TFT LCD

320 × 240 resolution

Up to 853-nit rated maximum brightness

Memory

16MB Flash

520KB SRAM

Audio

Integrated 1W speaker

Controls

Three physical programmable buttons

Battery

Integrated 110mAh rechargeable lithium battery

Connectivity

USB Type-C

HY2.0-4P interface

M5-Bus expansion interface

Expansion

15 broken-out I/O pins

M5Stack module support

Grove expansion support

Dimensions

54 × 54 × 17 mm

Weight

Approximately 49.5g

Privacy Awareness Without a Subscription

FlockYou Display combines a larger screen, audible alerts, physical controls, and open-source FlockYou firmware in a compact ESP32 platform.

It is designed for people who want more information on the device itself while keeping the system portable and straightforward.

For source code, documentation, firmware development, and technical information, visit the official  ⁠STS Collective FlockYou ESP32 Project.
