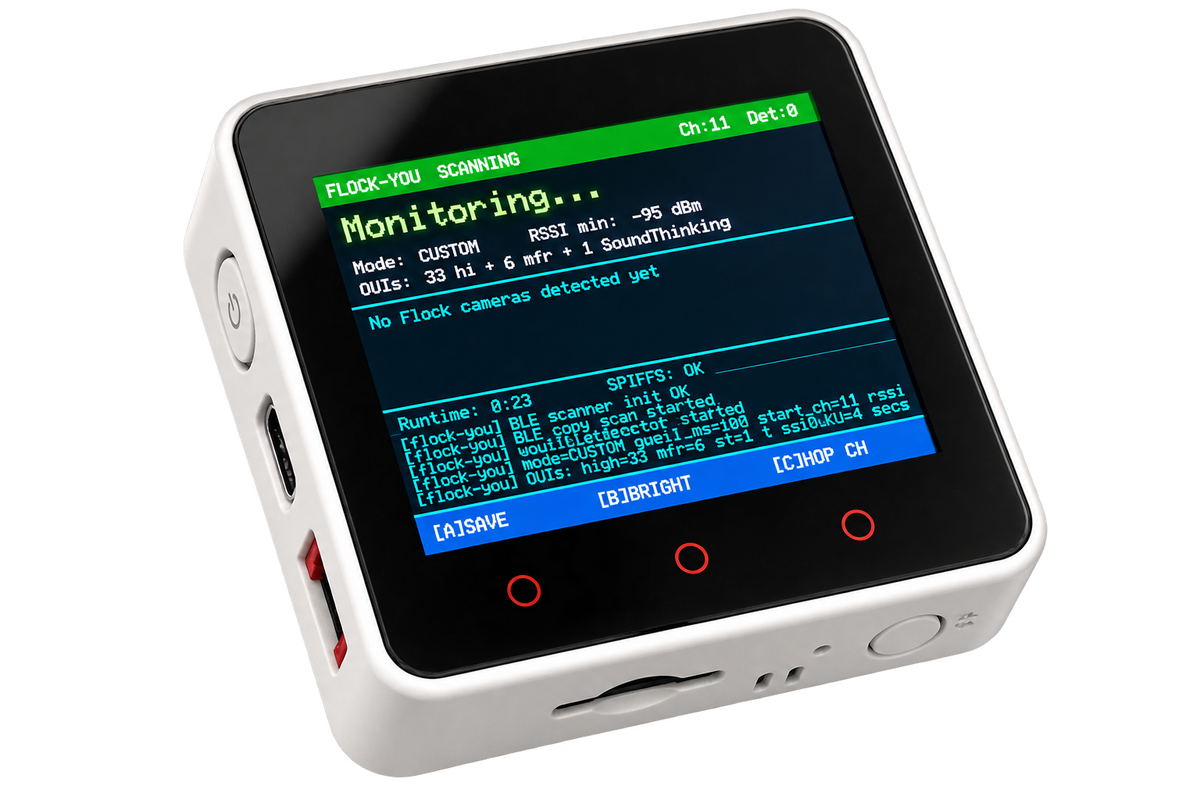

FlockYou Display Pro | Touchscreen ALPR Awareness Detector
FlockYou Display Pro | Touchscreen ALPR Awareness Detector
Before You Order
- Device: M5Stack Core2 with a 2-inch touchscreen, speaker and vibration hardware.
- Power: Integrated 500mAh rechargeable battery and USB-C connection; charge before use.
- Detection: Supported 2.4 GHz Wi-Fi signatures associated with Flock/ALPR equipment. Alert behavior depends on installed firmware.
Buying for a team?
Request a quote for multiple devices. Include your preferred model, quantity, delivery country/postal code and target date so we can confirm availability and shipping before you order. General response time: 24–48 hours.
Detection limits: Supported wireless signatures must be observable within range. A device can go undetected; no alert does not establish that an area is free of surveillance equipment.
Technical Specifications
Hardware Platform
Processor
ESP32-D0WDQ6-V3 dual-core 32-bit processor
Up to 240 MHz
Wireless
2.4 GHz Wi-Fi
Display
2-inch IPS color TFT LCD
320 × 240 resolution
Touch Interface
FT6336U capacitive touchscreen
Three programmable virtual button zones
Memory
16MB Flash
8MB PSRAM
520KB SRAM
Audio
Integrated speaker
NS4168 I2S amplifier
Haptic Feedback
Integrated vibration motor
Battery
500mAh rechargeable lithium battery
Power Management
AXP192 power management system
Connectivity
USB Type-C
Grove interface
M5-Bus expansion interface
Storage Expansion
microSD card slot
Sensors
6-axis MPU6886 IMU
Integrated SPM1423 microphone
RTC
BM8563 real-time clock
Dimensions
54 × 54 × 16.5 mm
Weight
Approximately 54.9g
Premium FlockYou Awareness Without a Subscription
FlockYou Display Pro combines passive ALPR awareness with a touchscreen, larger battery, speaker, vibration hardware, expandable storage, additional memory, and open-source firmware.
It provides a self-contained FlockYou experience for vehicle use, field research, privacy awareness, cybersecurity education, and wireless research.
For source code, documentation, firmware releases, and technical information, visit the official FlockYou ESP32 Project.
Setup guides and downloads
Download your free PDF guide for setup, power requirements, troubleshooting and documentation links. Save a copy for offline reference.
Project documentation
Use the instructions for your exact hardware and installed firmware version. Setup help: support@stscollective.com.
